2018 Beneteau Oceanis 35.1 – 34ft

RIGGING

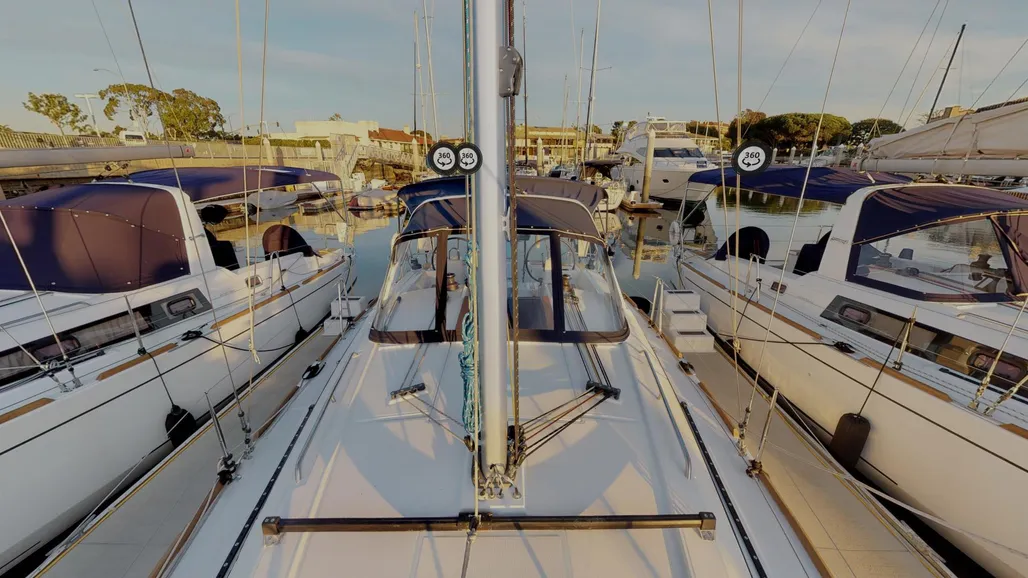

• Standard mast 9/10 anodized aluminium installed on the deck, 2 aft-swept spreaders
• Anodised aluminium boom
• Discontinuous stainless steel standing rigging
• 1 Backstay
• Rigid boom vang with tackle
• Genoa furling system with drum on the deck
• Rigging run back to cockpit (except boom topping lift)
• Complete running rigging: Main halyard, genoa halyard with clutch on mast and cleat, Boom topping lift with cleat on mast, Mainsheet, 2 Code Zero sheets,
• 4 clutches, 4 Jamming cleats
• Main sheet on bridle, with fixed points on the roof
• optional extra:
– Fixed composite arch, with incorporated LED lighting
– 2 Stand-up blocks for mainsail sheet

WINCHES
• 2 Self-tailing genoa sheet winches (H40.2 STA)
• 2 Coach roof winch self tailing (H35.2 STA)
• 2 Aluminium “Speed Grip” winch handle, 2 Winch handle box

SAILS
• Furling jib with UV protective strip
• Roller Furling Mainsail (new is Q1, 2024
• Code Zero

MOORING LINES – MOORING
• Self-bailing chain locker – Clench bolt – Hatch cover
• Single stem roller
• 6 Aluminium mooring cleats – Stainless steel deck line protection

SAFETY ON DECK
• 1 Open stainless steel forward pulpit, 2 Stainless steel pushpits
• 1 Lifebuoys support bracket
• Double guardrail and stainless steel stanchions
• Openings in guardrail to port and starboard
• Ring for flag welded on pushpit

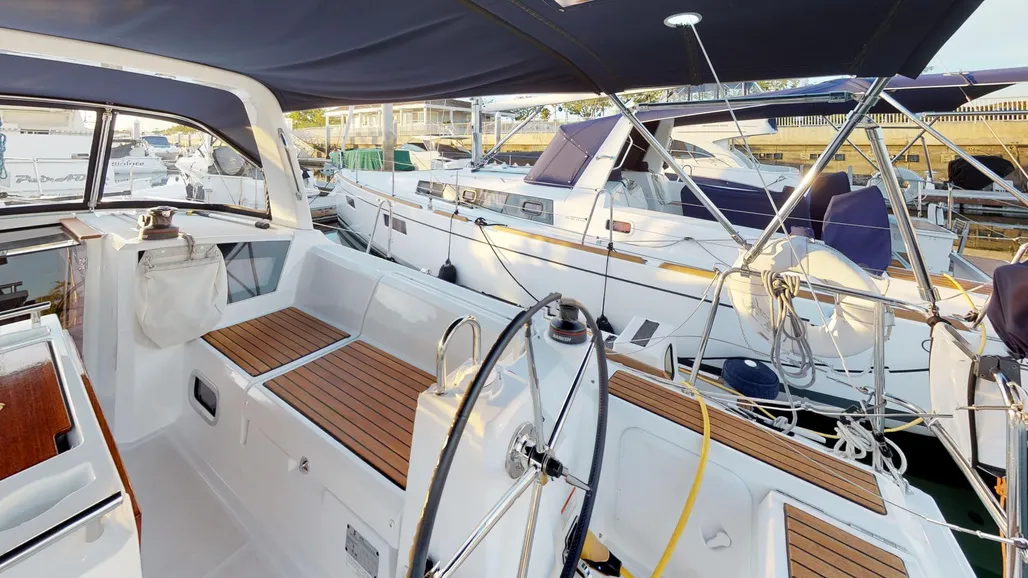

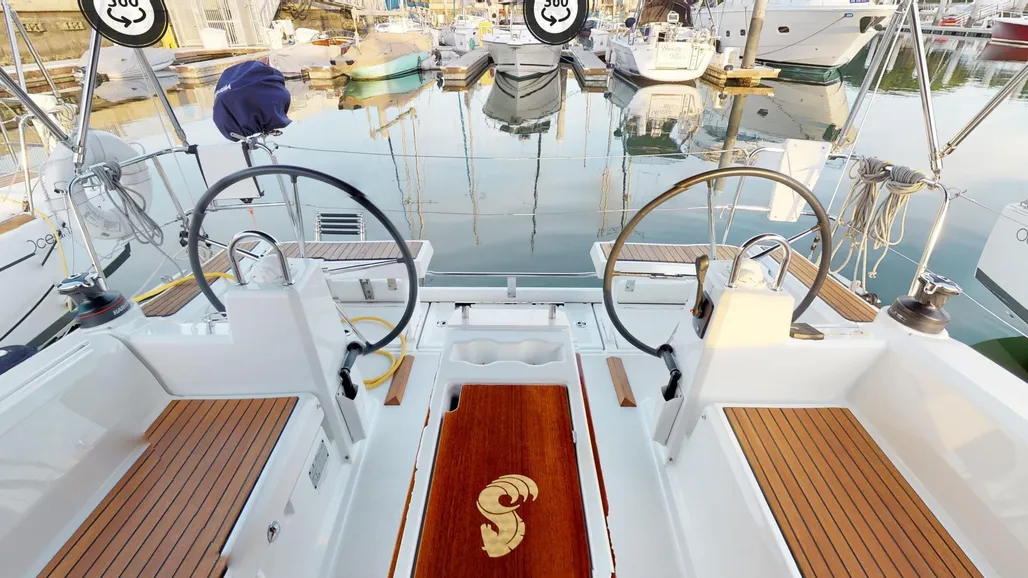

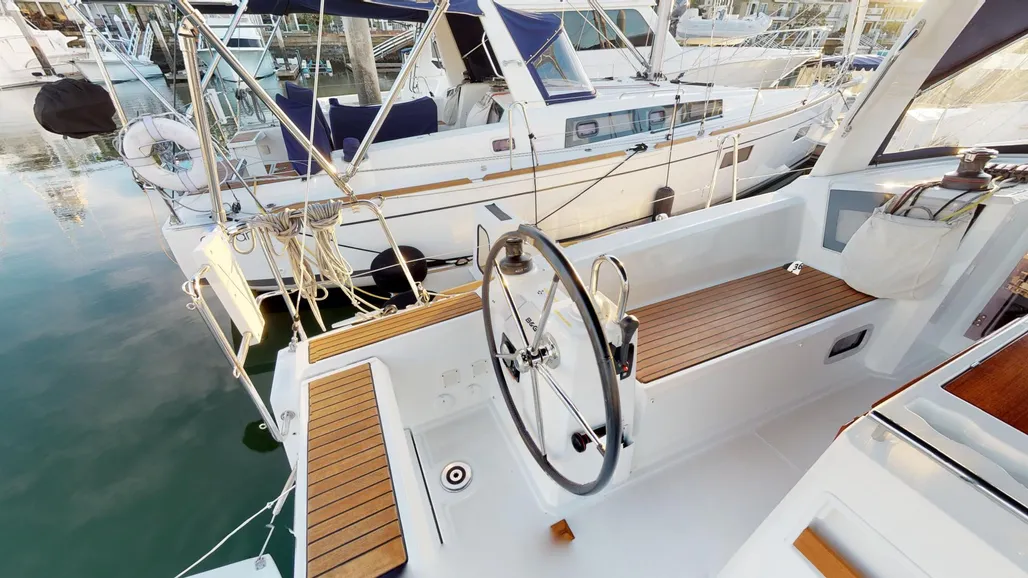

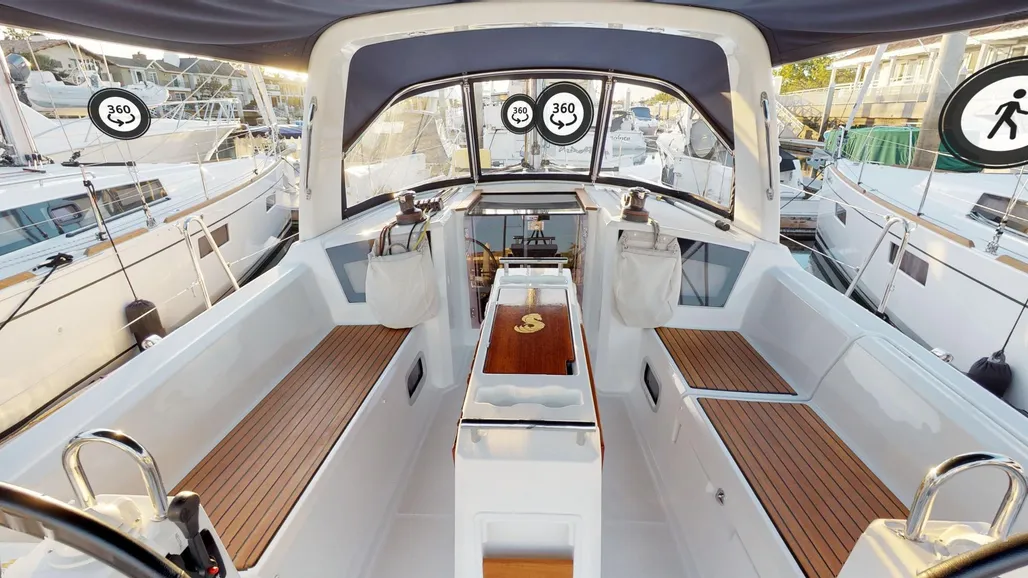

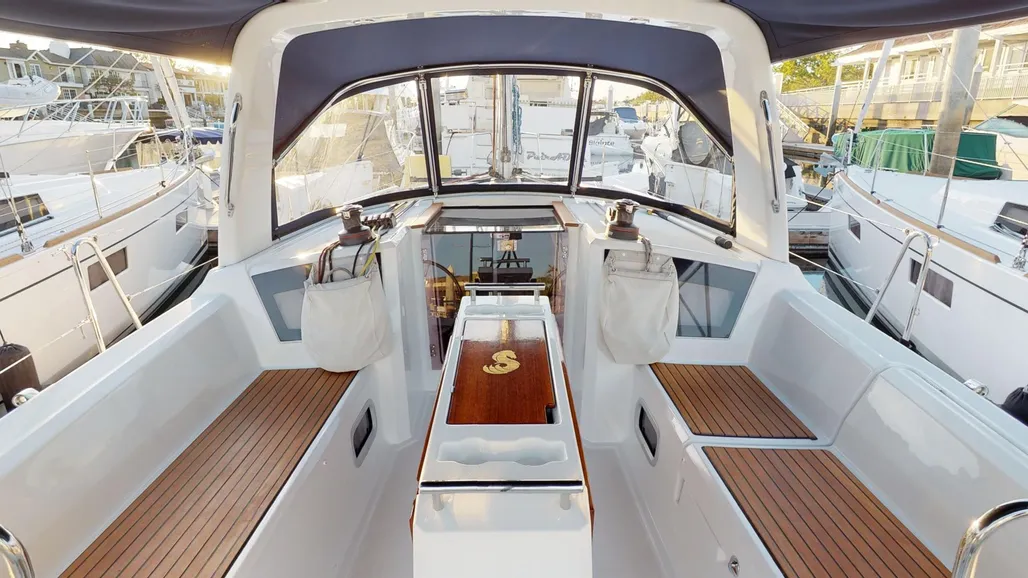

COCKPIT
• Self-draining cockpit
• 1 Cockpit locker
• 2 Lockers in cockpit bottom – Side helm’s seats
• 1 Liferaft locker – aft cockpit (0,95 m x 0,59 m x 0,36 m / 3’1’’ x 1’11’’ x 1’2’’)
• Natural solid wood slatted cockpit benches (1,50 m x 0,50 m / 4’11’’ x 1’8’’)
• 2 Steering wheel consoles: Stainless steel steering wheels – 800 mm diameter / 2’7’’ – Leather covered – Steering gear at the helm station – metal cable transmission system – Stainless steel handrail – navigation instrument support (optional instruments) – Cup holder
• 2 Steering compass
• 2 Deck access points to tiller system
• 1 Emergency tiller
• Portside engine control and control panel
• 2 Hinged PMMA companionway doors – Sliding hatch made of PMMA
• 1 Swimming ladder

SWIM DECK / STERN DECK (Exclusive Trim level)
• Fully opening transom, convertible to bathing platform (2,60 m x 0,70 m / 8’6’’ x 2’4’’)
• Gas strut opening (manual), 1 Stainless steel integrated telescopic swimming ladder

• Alpi Mahogany interior wood
• Parquet type laminated floors
• Fabric lined hull in saloon and forecabin
• Commando Natural upholstery, Foam density 35 kg/ m3
• Marine mattresses in the cabins ungraded with Memory Foam and covered with a decorative Sunbrella fabric

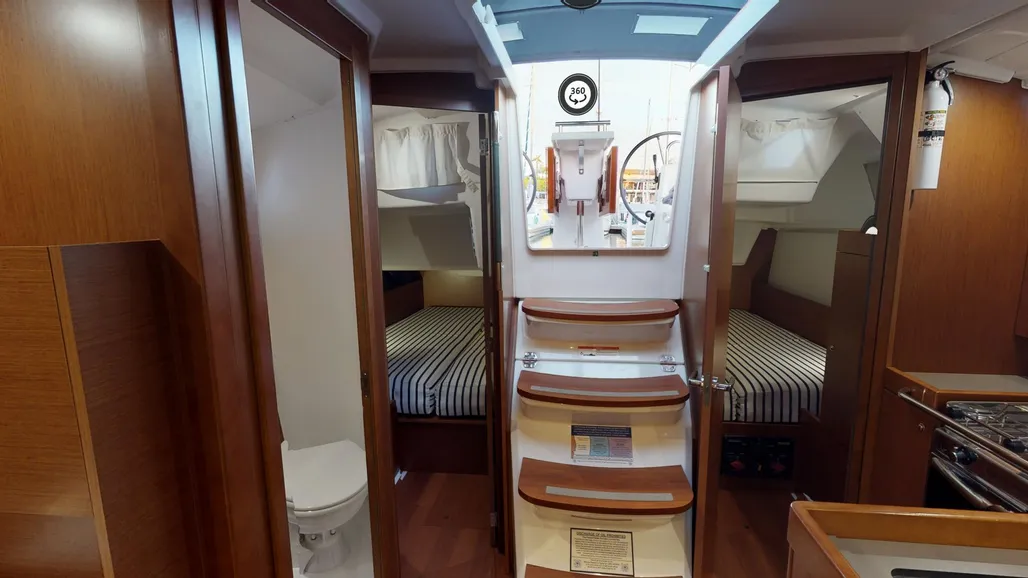

COMPANIONWAY
Headroom: 1,85 m / 6’1’’
• GRP saloon companionway coated with non-slip surface on the steps
• 2 Leather covered stainless steel handrails

HANGING LOCKER – PORT SIDE
• Beam: 50 cm / 1’8’’

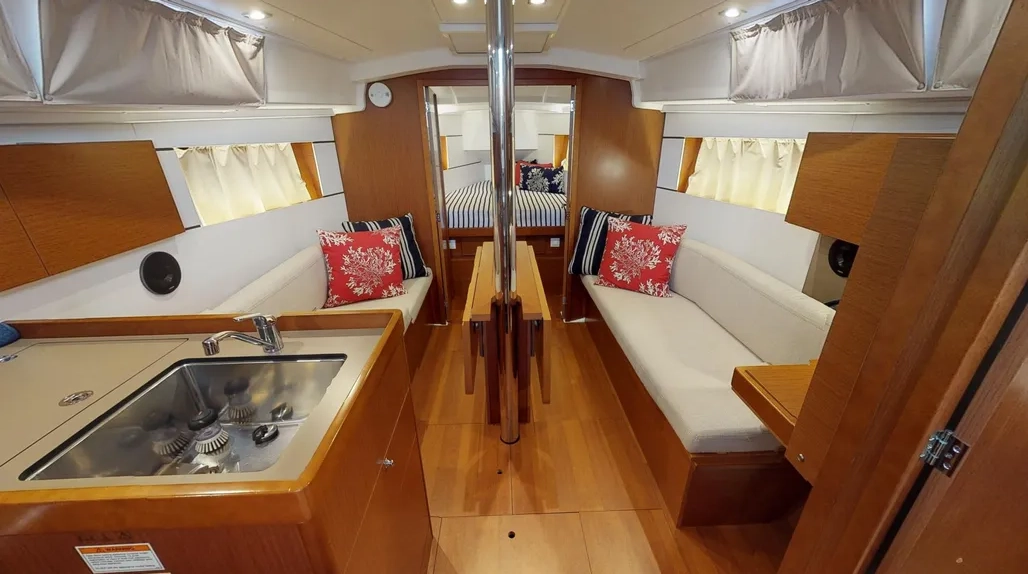

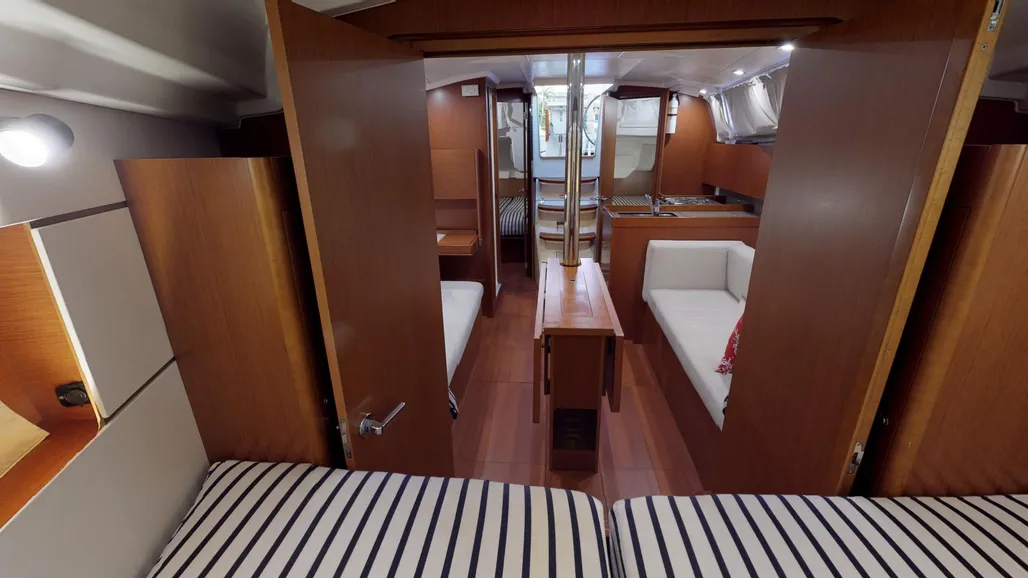

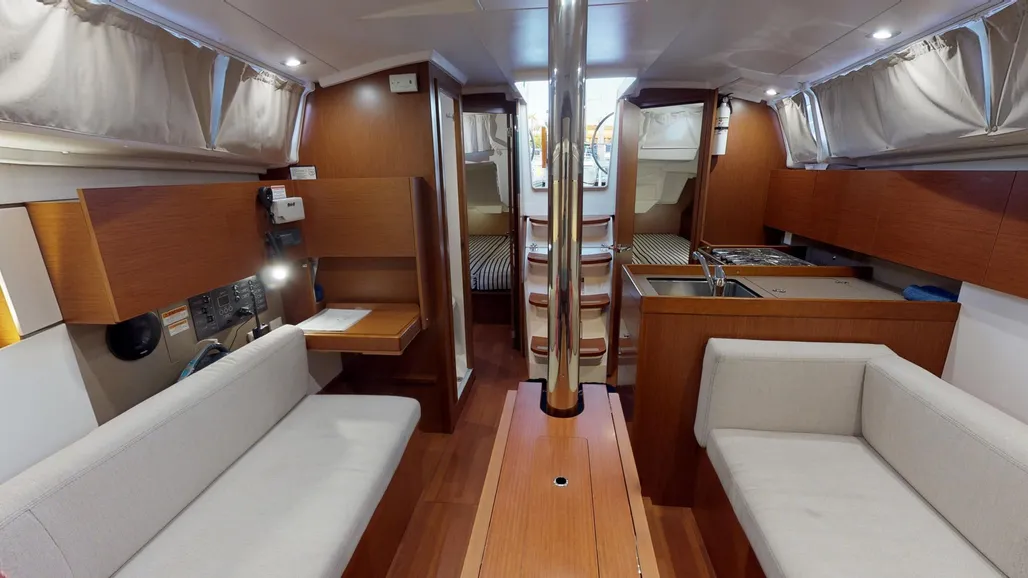

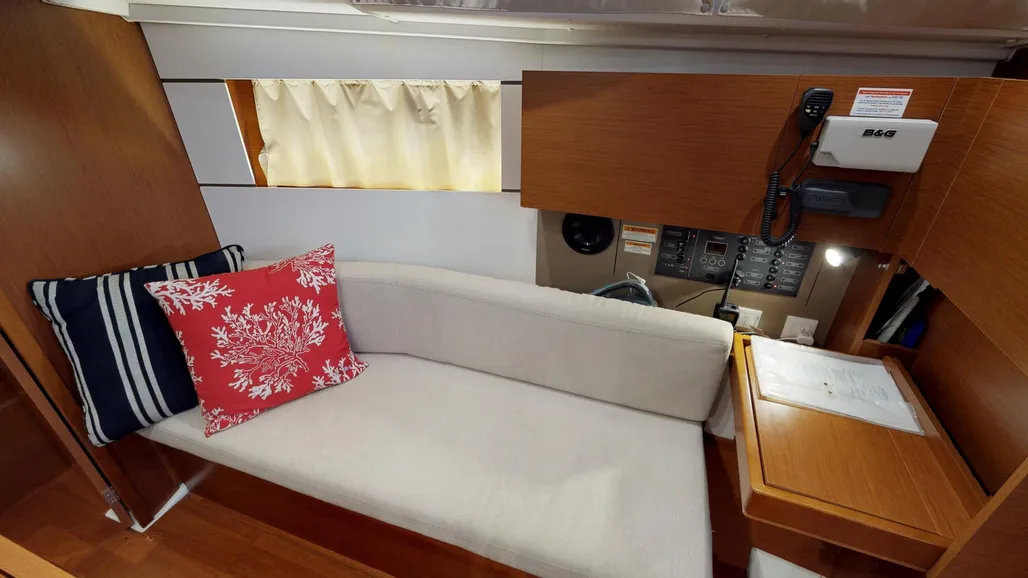

SALOON – PORT SIDE
Headroom: 1,90 m / 6’3’’
• L-shaped saloon bench seat
• Storage under bench seats
• Saloon table with one-piece wood top – 2 feet
• High, closed units

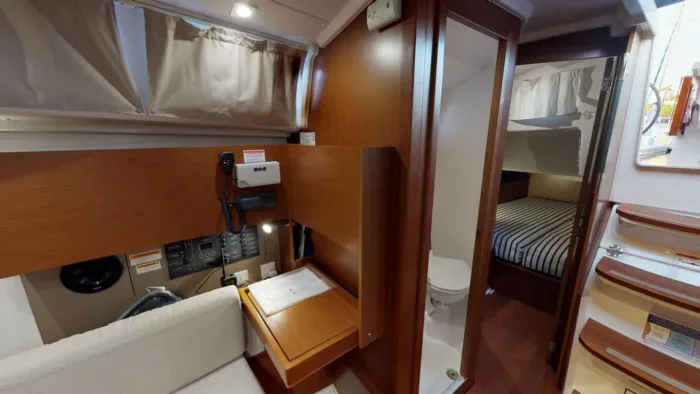

• Chart table (with opening top) – Reading light
• Shelves with fiddles
• 1 Coachroof panoramic window with curtain
• 2 Hull portholes with curtain
• 1 Opening deck hatch with mosquito blind
• 1 Opening porthole in coaming
• 6 Overhead lights

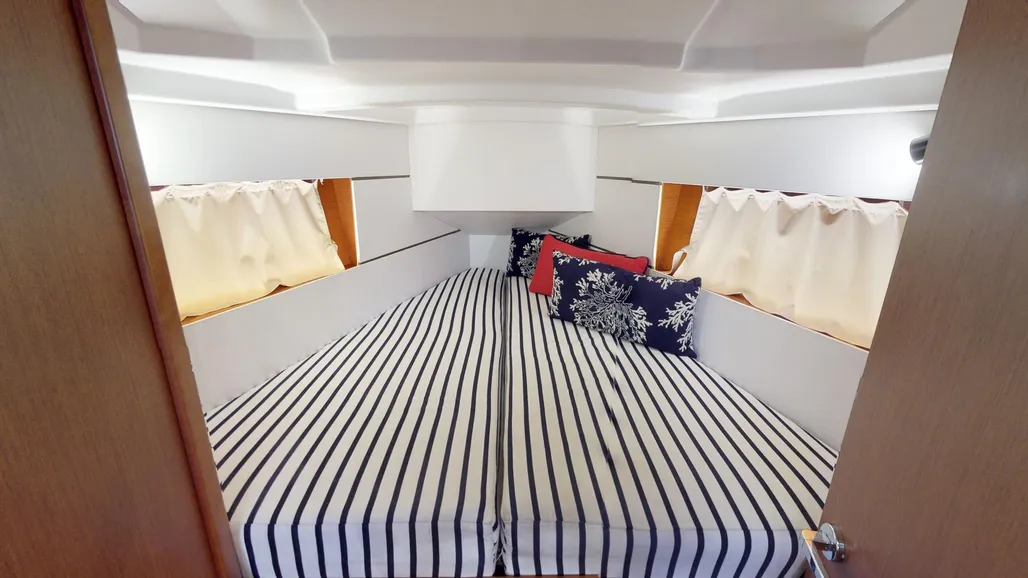

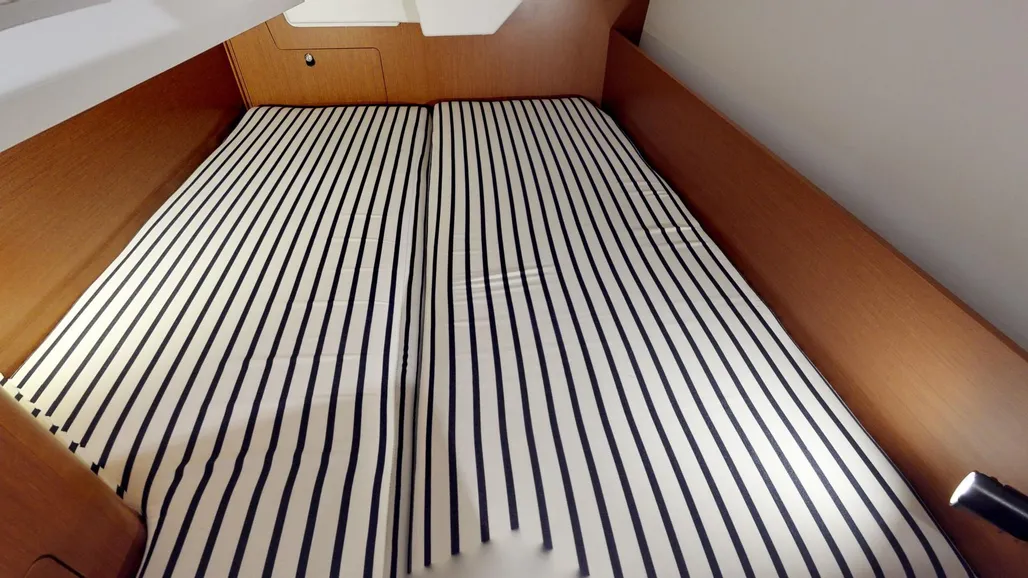

FORWARD CABIN
Headroom: 1,80 m / 5’11’’
• Central double bed (1,75 m x 2,00 m x 0,45 m / 5’9’’ x 6’7’’ x 1’6’’)
• 2 Hanger closets
• Drawer under the bed
• 1 Opening deck hatch with fan, mosquito blind
• 2 Hull portholes with curtain
• 2 Reading lights

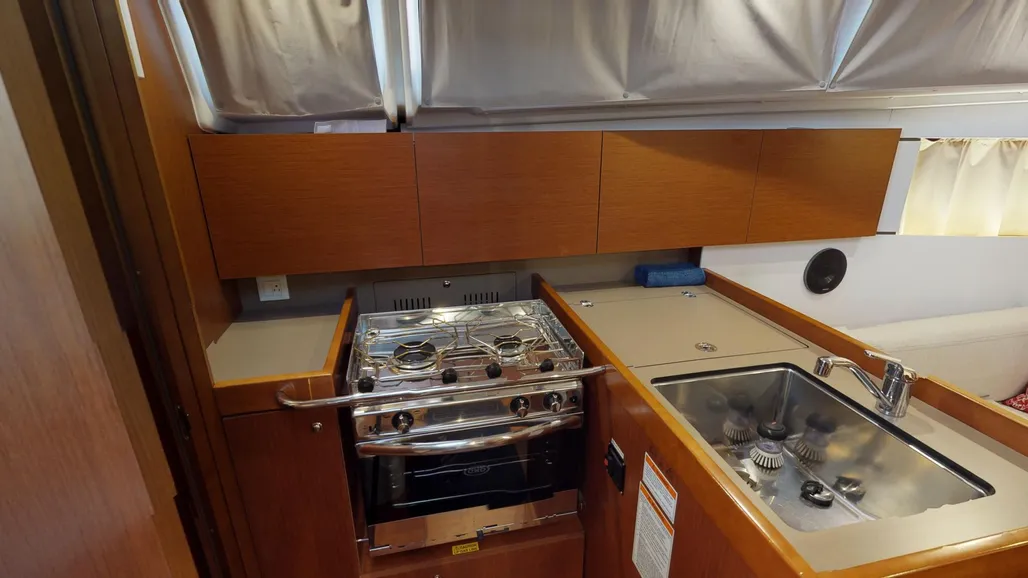

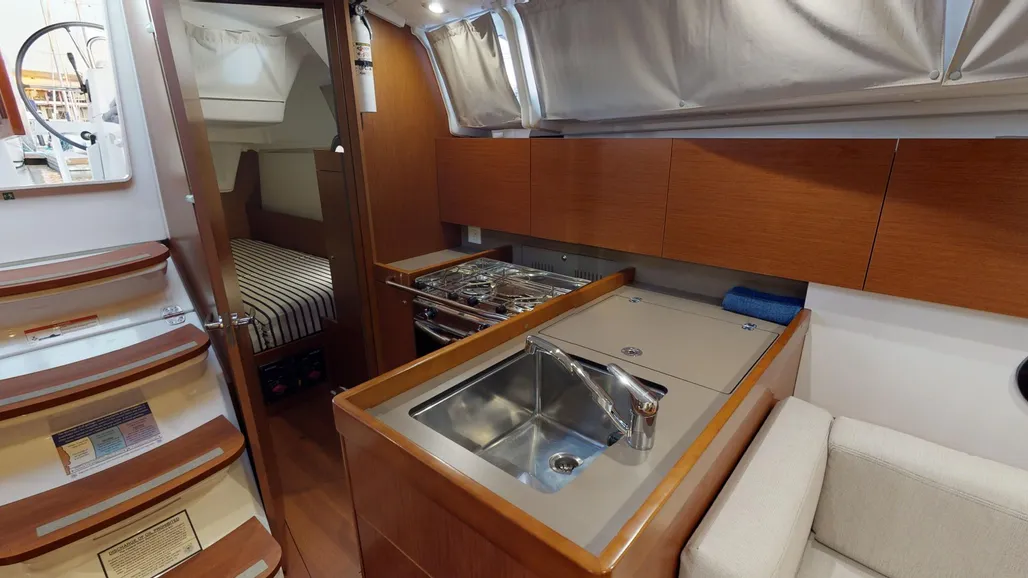

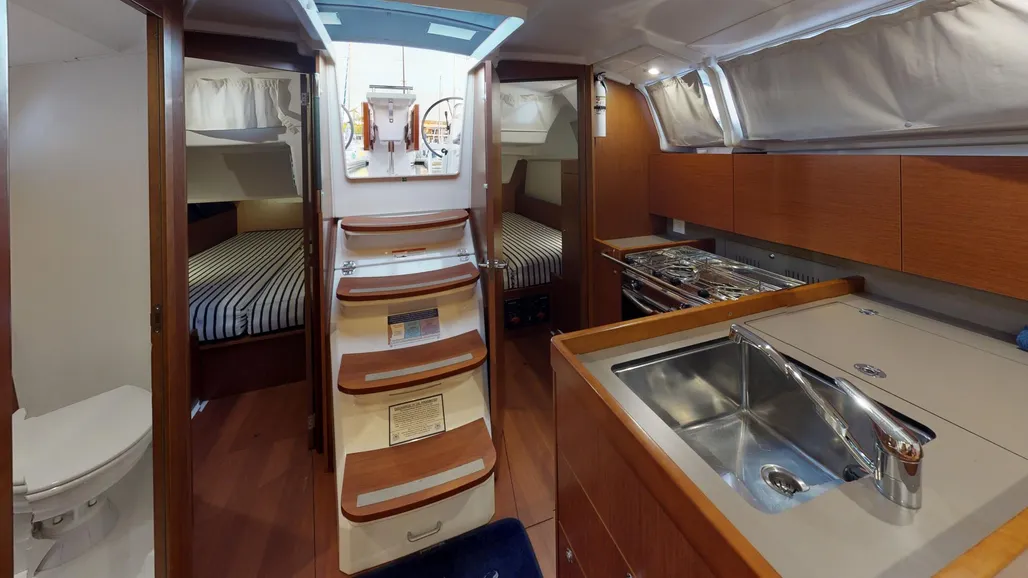

GALLEY COUNTER – PORT
Headroom: 1,90 m / 6’3’’
• Laminated worktop – Taupe
• 1 Stainless steel sink – 1 Rectangular stainless steel basin – 1 Hot/cold water mixer tap
• 1 2 hobs stainless steel gas cooker on mounting
• Unit (Drawer & Cupboards)
• Cubby hole locker, Bin
• 1 Coachroof panoramic window with curtain 2 cabins layout

PORT AFT: 1 Cabin
Headroom: 1,75 m / 5’9’’
• Dimensions – Berths: 1,73 m x 1,98 m / 5’8’’ x 6’6’’
• 1 Overhead light, 2 Reading lights
• Open shelving
• Padding upholstery along the hull
• 1 Wood hanging locker
• Deck house opening porthole

3 cabins layout
Headroom: 1,75 m / 5’9’’
• 2 Aft cabins
• Dimensions – Berths: 1,45 m x 2,00 m / 4’9’’ x 6’7’’

AFT STARBOARD HEAD COMPARTMENT
Headroom: 1,90 m / 6’31’’
• Access through saloon
• 1 Basin, 1 Mixing tap hot/cold water, Shower
• 1 Manual marine toilet with 80 L / 21 US Gal rigid reserve
• Head cabinet, 1 Mirror, Toilet accessories, Peg
• 1 Overhead light
• 1 Opening portlight with curtains in side windows in the coaming

L-SHAPED GALLEY ON PORT SIDE VERSION
• Replacing the hanging locker and the chart table
• Galley with 100 L / 26 US Gal cool box instead of the 130 L / 34 US Gal fridge
• Full hull width saloon: Bench seat on port and starboard sides, Large saloon table with 2 leaves and bottle rack, Retractable chart table on starboard side

• Engine Yanmar Diesel 30 hp / 30 HP Sail Drive
• Engine control – Control panel in cockpit
• Engine compartment: Soundproofing foam – Ventilation: 2 Air intakes and 1 powered air expulsion
• 1 Alternator – 12 V / 125 Ah
• 1 Rotomoulded diesel tank 130 L / 34 US Gal – Gauge at the chart table – 1 Deck filler
• Filters: Sea water – Diesel – Water separator
• Folding three blades propeller
• 1 Engine access through companionway – 3 access to engine by the sides of the companionway

• 12 V circuit
• 3 House batteries – 1 Engine start battery
• 1 Power distributor
• 12 V electrical panel
• 1 12 V Socket
• LED navigation lights: 1 Navigation light – 1 Engine navigation light – 1 Anchor light on masthead
• Wire runs for options cables

• 1 rotomoulded freshwater tank (130 L / 34 US Gal)
• 1 Deck filler
• Water unit
• 1 80 L / 21 US Gal rigid holding tank
• Electric pump & Shower draining
• Water heater (25 L / 7 US Gal) – engine start (220 V)

• Gas cylinder locker – starboard aft cockpit (25 cm x 27 cm x 40 cm / 10’’ x 11’’ x 15’’)
• Regulator and safety tap

B&G Electronic
• B&G AC42 autopilot + Control at steering station
• B&G V50 VHF, AIS receiver function
• ForwardScan Sensor (Forward underwater vision)

Rigging – Sails
• Anodized mast furling system with Mylar – Taffetas mainsail
• Asymmetrical spinnaker rigging + Code 0 rigging + 2nd bow roller and

Bobstay
• Self-tacking jib hardware
• Code 0 on “Top Down” furling system
• Self-tacking jib (replacing genoa)
• Asymmetrical spinnaker
• 2 Flag halyards

Winches
• Code Zero sheet winches
• Port coachroof winch
• Coach roof winch to starboard

Hull – Deck – Cockpit
• Mainsail arch
• “Luxe” cockpit table
• Cockpit fixed portholes for the aft cabin(s)
• Cockpit opening porthole for aft cabin(s)

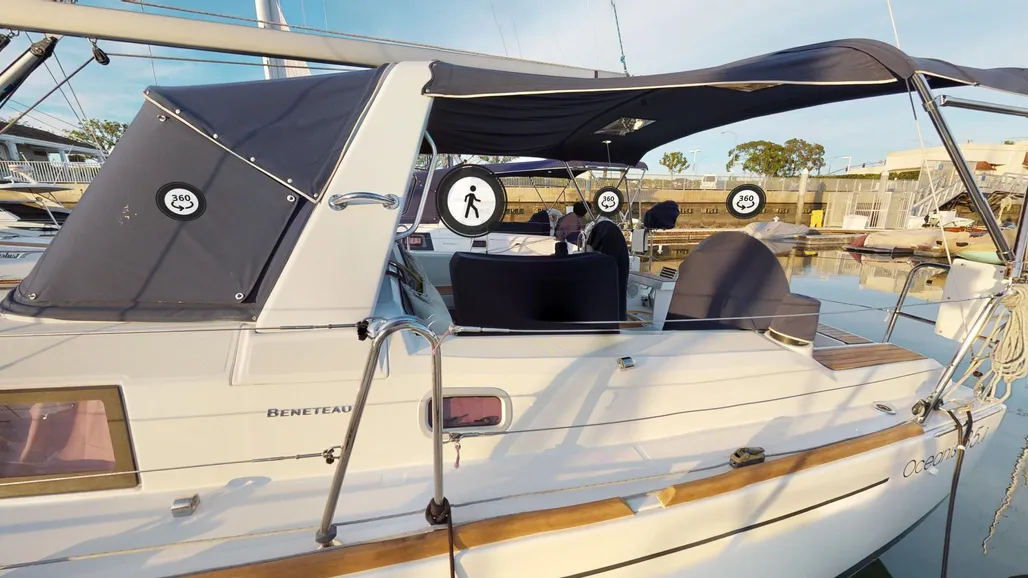

• Dodger (Blue)
• Bimini
• Dark Narval Cockpit cushions
• 3 feathering blades propeller
• Windlass control in cockpit with chain counter (fixed)
• Outboard engine (Pushpit)

Interior equipment
• Stainless steel 2 burner oven/grill cooker on mounting
• Slatted bed base
• Wooden companionway steps
• Quiet Flush electric toilet
• Additional freshwater tank (200 L / 53 US Gal)
• Additional 40 L / 11 US Gal cool box (for L-shaped galley)
• Converter 12 V

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
